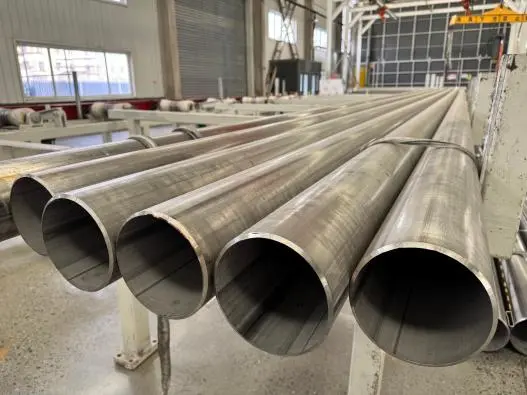

ASTM A790 UNS S32205 Steel Pipe for Marine and Water Treatment Systems

When your project demands materials that survive relentless saltwater exposure, aggressive chemicals, and high operating pressures, the choice of pipe grade becomes a make-or-break decision. ASTM A790 UNS S32205 Steel Pipe is an improved duplex stainless steel pipe with a controlled composition that delivers nearly double the yield strength of conventional austenitic grades. Its elevated chromium, molybdenum, and nitrogen content produce a Pitting Resistance Equivalent Number (PREN) typically above 35, making it a preferred solution for marine piping systems, seawater desalination plants, and municipal water treatment infrastructure where long service life and structural reliability are non-negotiable.

Understanding ASTM A790 UNS S32205 Steel Pipe

What Sets This Grade Apart?

The high-nitrogen version of S31803 is called UNS S32205. The ASTM A790 UNS S32205 Steel Pipe standard covers ferritic/austenitic duplex stainless steel pipes that are seamless or welded and are made for general corrosive service, with a focus on their ability to resist stress corrosion cracking (SCC). The alloy's unique combination of toughness and corrosion resistance comes from its balanced microstructure, which is made up of about 50% austenite and 50% ferrite.

22–23% chromium, 3.0–3.5% molybdenum, 4.5–6.5% nickel, and 0.14–0.20% nitrogen make up the standard chemical makeup. The minimum yield strength is 65 ksi (450 MPa), and the minimum tensile strength is 95 ksi (655 MPa). These numbers let engineers use smaller wall sections without lowering the pressure values, which directly lowers the cost of materials for each project.

Heat Treatment and Surface Condition

Solution annealing at 1020–1100°C followed by rapid quenching keeps the balance of the duplex phase and gets rid of any precipitates that might make corrosion less effective. To make the pipe surface as resistant to cracking as possible, it is pickled and passivated according to ASTM A380. This creates a strong chromium oxide inactive layer. This step is especially important in marine settings that are high in chloride, where even tiny surface contamination can cause rusting to start in one spot.

Comparing ASTM A790 UNS S32205 with Other Steel Pipe Standards

S32205 vs. S31803 and Austenitic Grades

When ordering duplex pipe, many buying teams come across both S31803 and S32205. It's the same structure, but ASTM A790 UNS S32205 Steel Pipe has stricter minimum limits for chromium (22% vs. 21%), molybdenum (3.0% vs. 2.5%), and nitrogen (0.14% vs. 0.08%). Because the chemistry is tighter, the PREN is higher, and the material is less likely to pit or crack in salt conditions.

When you compare to ASTM A312 austenitic grades, the story gets more interesting. Grade 316L is often used in corrosive environments, but it has a minimum yield strength of only 30 ksi (205 MPa) and a PREN of about 24. In real life, duplex S32205 pipe can hold about twice as much weight while having a wall thickness that is half as thick. It also doesn't break down as quickly as 316L systems do when they are heated above 60°C because of chloride-induced SCC.

Compared to super duplex alloys like UNS S32750 (PREN > 42), S32205 has a slightly lower resistance to extreme corrosion but is much cheaper and easier to find around the world. This is a good balance for most marine and water treatment projects that don't involve highly concentrated acid streams.

Applications of ASTM A790 UNS S32205 in Marine and Water Treatment Systems

To choose the right pipe material, you need to know how it works in the exact situations your system will be exposed to. As you can see, ASTM A790 UNS S32205 Steel Pipe proves its worth in two tough application areas.

• Seawater intake and cooling systems: Coastal power plants and offshore platforms use S32205 pipe for seawater cooling loops where chloride levels regularly go above 19,000 ppm. The alloy's PREN value above 35 stops cracking from starting, which would quickly perforate 316L pipe within months of use.
• Desalination plant pipework: Pipes in desalination plants are exposed to high-pressure saline streams and chemical dosing in reverse osmosis and multi-stage flash desalination systems. S32205 consistently handles this double attack, and its high tensile strength can handle the high working pressures that are common in RO systems.
• Water treatment chemical dosing lines: lines for chlorination, pH control, and coagulant injection carry strong chemicals. Because the alloy is resistant to acid and wear, upkeep can be done less often, which keeps treatment plants running and lowers their total operating cost.
• Offshore structural and process piping: Both subsea and topside oil and gas uses need SCC protection when they are exposed to both mechanical stress and salt water. S32205 meets the requirements for both NACE MR0175 sour service and structural load.

These improvements in speed have been shown to save money. NACE International's research on the industry shows that rust costs U.S. businesses about $276 billion a year, with infrastructure and utilities being the most affected. Using the right pair grade greatly increases the time between replacements and lowers unexpected downtime.

Procurement and Supply Chain Insights for ASTM A790 UNS S32205 Steel Pipes

Finding duplex stainless steel pipe requires more than just looking at price lists. The final cost and schedule for your project depend on a number of things. The length, thickness, and diameter of the walls all have a direct effect on the weight of the raw materials used, which in turn affects the unit price. The market price for ASTM A790 UNS S32205 Steel Pipes changes based on the prices of nickel and molybdenum. To avoid price changes when you place big orders, it is best to set up a price-lock mechanism with your provider. For important service uses, mill test reports (MTRs) that are certified to ASTM A790 and offer third-party inspection options are normal.

From well-known mills, lead times for normal sizes are usually between four and eight weeks. Orders with tight tolerances or custom sizes may cause the plan to slip. Working with a seller that keeps finished goods on hand and has a well-organized production process greatly lowers the risk of missing a deadline. When planning logistics, the pipe's wall thickness range should be taken into account because it affects both the weight of the shipment and the type of packaging needed for sea freight.

Why Choose YOUFA's ASTM A790 UNS S32205 Steel Pipes?

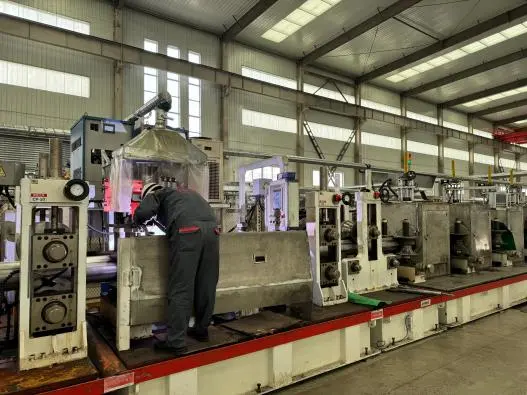

YOUFA was started in 2017 and has 15 production lines that can make 50,000 tons of stainless steel pipes every year. Because of our size, we have a good stock of ASTM A790 UNS S32205 Steel Pipes in a variety of sizes, so we can meet tight project deadlines without sacrificing quality.

We make sure the quality of our products by getting them from reputable steel mills and then testing them in-house using hydrostatic pressure, eddy current inspection, measuring to make sure the sizes are correct, and certifying their full chemical and mechanical properties according to ASTM A790. You can check the mill test document that comes with every pipe.

We work with distributors, engineering contractors, OEM fabricators, and project developers all over the world, and we know that a competitive price isn't the only thing that matters when it comes to B2B buying decisions. Long-term dependability in your supply chain comes from quick expert help, clear documentation, and regular on-time delivery. Our team handles everything, from confirming the order to delivering the finished product. This is true whether your project needs standard duplex pipe lengths or OEM specifications that are made just for you.

Conclusion

In marine and water treatment settings, ASTM A790 UNS S32205 Steel Pipe offers an excellent combination of high yield strength, a favorable PREN, and resistance to stress corrosion cracking that many austenitic grades cannot match. ASTM A790 UNS S32205 Steel Pipe has well-established mechanical properties, can be welded effectively using ER2209 filler metal, and has been successfully used in a wide range of demanding applications. This makes ASTM A790 UNS S32205 Steel Pipe a technically sound and financially sensible choice for procurement teams that cannot afford premature failures in critical fluid systems. When ASTM A790 UNS S32205 Steel Pipe is specified correctly, including appropriate solution annealing and a properly pickled and passivated surface finish, the alloy can deliver reliable corrosion resistance and mechanical performance throughout its intended service life. By selecting ASTM A790 UNS S32205 Steel Pipe and following the correct fabrication and finishing procedures, buyers can maximize system reliability while controlling long-term maintenance costs.

FAQ

What is the difference between S31803 and S32205?

When compared to S31803, S32205 has higher minimum chromium (22%), molybdenum (3.0%), and nitrogen (0.14%). This tighter makeup gives S32205 a higher PREN and a better ability to fight pitting and crevice corrosion. This makes it the best choice for chloride environments that are very tough.

Can this duplex pipe be welded on-site?

Yes, exact control of the heat input and ER2209 filler metal are needed for welding to keep the 50/50 balance of austenite and ferrite phases in the weld zone and heat-affected zone. Post-weld cleaning and passivation make the metal completely resistant to rust again.

What is the recommended service temperature range?

From -50°C to 300°C, the metal works consistently. Long-term contact with temperatures above 315°C can lead to 475°C embrittlement, which makes the material less tough and shouldn't be used in high-temperature applications all the time.

How does it compare to 316L for water treatment applications?

It has about twice the yield strength and a much higher PREN than 316L. It is also much more resistant to SCC caused by chloride. For most marine and water treatment uses, the longer service life makes up for the higher cost of the material at first.

What surface finish ensures maximum corrosion resistance?

As required by ASTM A380, the surface must be pickled and passivated. This process gets rid of surface dirt and free iron, making room for a thick chromium oxide passive film to form that protects for a long time.
