ASTM A790 S31803 Pipe Ensures Corrosion Resistance in Heat Exchanger Systems

When heat exchanger systems fail, the culprit is almost always corrosion. Chloride attack, stress corrosion cracking, and pitting quietly degrade system integrity until maintenance costs spiral and downtime becomes unavoidable. ASTM A790 S31803 stainless steel pipe was engineered precisely to combat these failure modes. As a duplex stainless steel grade combining an austenitic-ferritic microstructure, it delivers mechanical strength roughly twice that of standard 316L austenitic grades while maintaining exceptional resistance to localized corrosion. For procurement managers and engineers sourcing piping solutions for demanding thermal and chemical environments, S31803 represents a technically sound, cost-competitive material choice backed by decades of industrial field performance.

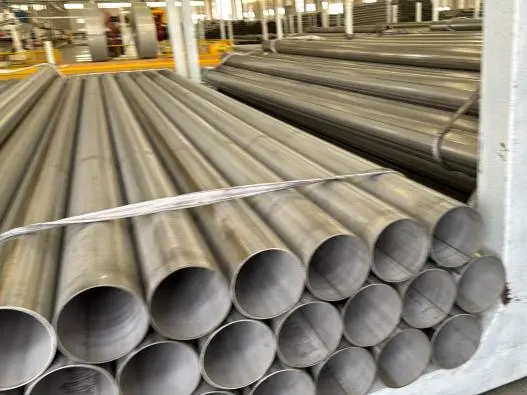

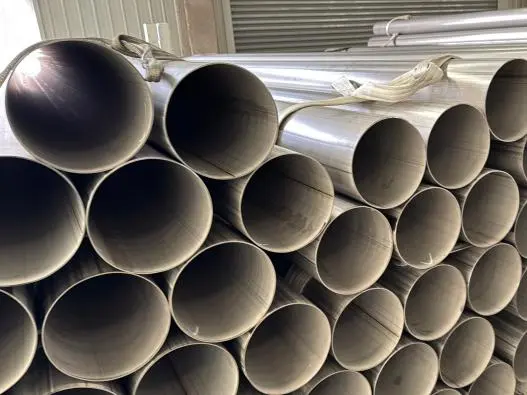

Understanding ASTM A790 S31803 Stainless Steel Pipe

Chemical Composition and Microstructure

The performance of ASTM A790 S31803 Stainless Steel Pipe comes from its carefully balanced chemistry, which includes about 22% chromium, 5–6% nickel, 3% molybdenum, and 0.14–0.20% nitrogen. The nitrogen content is very important because it keeps the austenite phase stable and raises the pitting resistance equivalent number (PREN), which for this grade usually goes above 34. The resulting two-phase microstructure, which is about half austenite and half ferrite, gives the combination qualities that neither phase could get by itself.

Mechanical Properties and Service Temperature

The minimum yield strength of S31803 is 65 ksi (450 MPa), and the minimum tensile strength is at least 90 ksi (620 MPa). This is a lot higher than the minimum yield strength of 316L, which is 30 ksi. Because it is stronger, engineers can specify wall pieces that are smaller. This lowers the weight of the materials and the total cost of installation for big projects. The alloy works consistently up to about 300°C (572°F). Above that temperature, long-term contact causes "475°C embrittlement" through the formation of brittle secondary phases, so thermal design engineers should take that limit as firm.

Corrosion Resistance and Performance in Heat Exchanger Systems

In chemical processing, hydrogen production, and fuel cell manufacturing, heat exchangers often deal with cooling water that is high in chloride, acidic condensates, and streams that are high in sulfide. These are the places where austenitic types like 304 and 316L lose their ability to fight corrosion the most.

ASTM A790 S31803 Stainless Steel Pipe offers three unique safety features that make it very stable for use in heat exchangers:

• Resistance to chloride stress corrosion cracking (SCC): The ferritic phase breaks up the continuous austenitic matrix that usually causes SCC. This lets the alloy withstand chloride concentrations that would crack 316L tubes in months.
• Superior pitting and crevice corrosion resistance: S31803 doesn't allow the localized attack that starts at tube-to-tubesheet joints and baffles, which are known trouble spots in shell-and-tube heat exchangers, when its PREN is above 34.
• Resistance to sulfide environments: In oil and gas heat exchanges where H₂S and chlorides coexist, S31803 keeps its structure solid while standard austenitic grades crack from the stress of sulfide.

These protective qualities directly lead to operational results that can be measured. Industry research consistently shows that duplex stainless steel heat exchanger tubes have service lives that are two to three times longer than equivalent 316L installations in chloride-bearing services. This means that they need a lot less unplanned maintenance. This extra long service life directly supports the long-cycle steadiness that operators need in new energy uses like hydrogen electrolysis systems and fuel cell cooling circuits.

Comparing ASTM A790 S31803 with Other Stainless Steel Grades

S31803 vs. S32205 and Super Duplex S32750

Many people think of S32205 as a "restricted chemistry" improvement on ASTM A790 S31803 Stainless Steel Pipe because it has higher minimum amounts of chromium, molybdenum, and nitrogen. Most current ASTM A790 pipe is dual-certified to meet both grades at the same time, so buyers don't really need to know the difference. On the other hand, super duplex S32750 is made for harsher environments and has a PREN greater than 42. However, because it has a lot more alloys, it costs more than other heat exchangers that aren't used for harsh environments.

S31803 vs. 316L and Carbon Steel

The yield strength of S31803 is about twice that of 316L, and it is much more resistant to rust caused by salt. Even though S31803 costs more per pound than 316L, its higher strength lets wall specs be thinner, which lowers the total weight of the pipe and the cost of making it. Compared to carbon steel, S31803 doesn't need to be coated and inspected as often, which means it costs less over its lifetime and can be calculated by procurement teams during capital planning. This is especially true in situations where aqueous chlorides, acids, or humid industrial atmospheres are present.

Procurement Considerations for ASTM A790 S31803 Stainless Steel Pipes

Supplier Certification and Quality Verification

It takes more than looking through a catalog to find a good ASTM A790 S31803 Stainless Steel Pipe supplier. Teams in charge of buying things should make sure that any potential suppliers have up-to-date mill test reports (MTRs) that can be traced back to reputable steel sources. They should also make sure that their inspection procedures are written down and cover things like dimensional tolerances, hydrostatic testing, and non-destructive examination. Finally, they should make sure that their quality management system is in line with ISO 9001 or a similar standard. For large orders, it's a good idea to ask for third-party inspection access during production.

It's important to be clear about the following factors that affect prices right away: the minimum order quantity to unlock tiered pricing; lead times for welded vs. seamless pipe configurations; surface finish requirements; and custom cut lengths or end preparations. Suppliers who offer full professional support, including help with welding procedures, paperwork for material certification, and transportation planning, add real value on top of the pipe itself.

Maximizing Benefits from ASTM A790 S31803 Pipes in Your Projects

The installation is the first step in getting the most out of ASTM A790 S31803 Stainless Steel Pipe tubing. Controlled heat and filler metals usually over-alloyed with 7–9% nickel to keep the phase balance in the heat-affected zone are needed to weld S31803. Most of the time, there is no need for a heat treatment after welding. If a full anneal is needed, it must be done quickly to stop the formation of the sigma phase, which would lower the rust resistance.

Regular maintenance checks, like visual and eddy-current inspections of tube bundles on a regular basis, getting rid of iron contamination deposits right away so they don't start under-deposit corrosion, and keeping an eye on fluid chemistry to make sure operating conditions stay within the grade's qualified envelope are all things that protect long-term performance. Because S31803 is flexible and can be used in desalination, chemical processing, oil and gas, and new hydrogen infrastructure, investing in its proper installation and care pays off over the entire lifecycle of a project.

Conclusion

When it comes to heat exchangers in harsh industrial settings, ASTM A790 S31803 Stainless Steel Pipe is one of the most technically balanced materials that can be used. Its duplex microstructure gives it mechanical strength and resistance to corrosion that austenitic grades can't match at the same wall thickness. This grade is a reliable way for procurement managers in the new energy, chemical, automotive, and aerospace industries to lower lifecycle costs and make systems last longer. That material edge turns into real project results when you choose a provider with confirmed certifications, clear quality documents, and quick technical support.

FAQ

What is the difference between S31803 and S32205?

S32205 is a limited chemistry form of ASTM A790 S31803 Stainless Steel Pipe that has higher minimum amounts of chromium, molybdenum, and nitrogen. This gives it a slightly higher PREN and a slightly better resistance to corrosion. Most ASTM A790 pipes on the market today are dual-certified, which means they meet both standards.

Can S31803 duplex pipe be welded on-site?

If the right controls are put in place, yes. To keep the balance of the austenite and ferrite phases in the weld zone, welders should use low-hydrogen filling metals that are alloyed with nickel and keep the heat input within the allowed ranges.

What is the maximum recommended service temperature?

S31803 can only be used continuously at temperatures below 300°C (572°F). Long-term contact above this level causes weakening through secondary phase precipitation.

How does S31803 compare to 316L on total cost?

Even though S31803 costs more per pound, its higher yield strength lets thinner wall specs be used. Because of less weight and longer service life, the installed system often costs less than a 316L version over the span of the project.

Does S31803 require post-weld heat treatment?

No, not usually. If a solution anneal is needed, it needs to be followed by a quick quenching to stop the formation of the sigma phase, which would lower the toughness and corrosion resistance.
