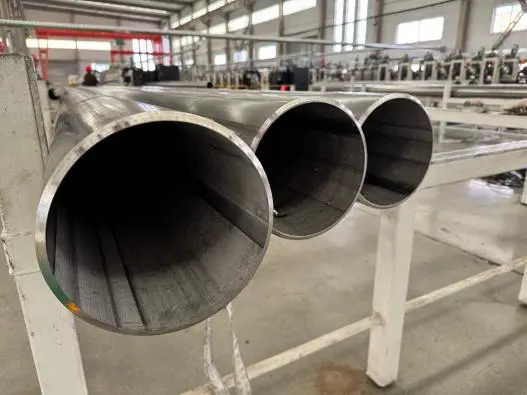

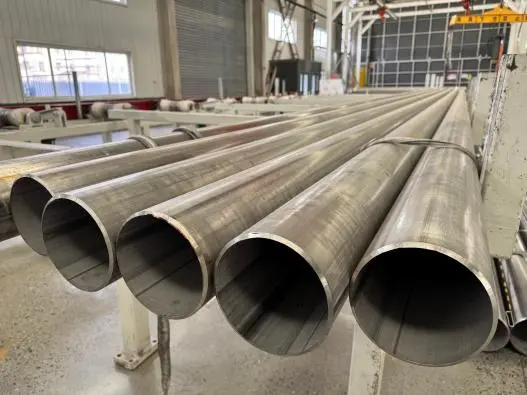

ASTM A790 Duplex 2205 Stainless Steel Pipe for Oil and Gas Processing

When your operation depends on piping that holds up under corrosive fluids, high pressures, and relentless thermal cycling, material selection is not a secondary concern—it is the foundation of project success. ASTM A790 Duplex 2205 Stainless Steel Pipe has become the go-to solution across oil and gas processing environments precisely because it delivers where standard austenitic grades fall short. With a dual-phase microstructure, superior chloride resistance, and mechanical properties that outclass conventional 316L stainless steel, this duplex grade supports reliable, long-cycle performance on offshore platforms, subsea pipelines, and refinery processing units alike.

Understanding ASTM A790 Duplex 2205 Stainless Steel Pipe

Chemical Composition and Microstructure

Duplex 2205 is a type of steel that is classified under UNS S32205, which is the stricter replacement for S31803. It is made up of about 22% chromium, 5% nickel, and 3% molybdenum, with 0.14% to 0.20% nitrogen added on purpose. With this chemistry, the austenite and ferrite phases are about evenly split. That balanced microstructure is what gives the alloy its amazing mix of tensile strength, impact toughness, and resistance to stress corrosion cracking caused by chloride—a way that 300-series stainless steels often fail in saltwater and seawater service.

Mechanical Properties and Heat Treatment

Under ASTM A790, the lowest yield strength of ASTM A790 Duplex 2205 Stainless Steel Pipe is 65 ksi (450 MPa), which is about twice as strong as 316L. The elongation is at least 25%, which shows that the material is both strong and flexible. The specification calls for solution annealing between 1870°F and 2010°F (1020°C–1100°C) and then a rapid water quench right away. This is done to stop the formation of harmful intermetallic phases. Skipping or shortchanging this step lowers both resistance to corrosion and hardness, so heat treatment tracking must be a quality checkpoint that can't be skipped during purchase.

Comparing Duplex 2205 with Alternative Stainless Steel Grades

Procurement teams often weigh Duplex 2205 against 316L, 904L, and super duplex grades like S32750. Before agreeing to a standard, it's important to understand these main differences:

• Duplex 2205 vs. 316L: For Duplex 2205, the Pitting Resistance Equivalent Number (PREN) is around 33–35, while for 316L, it's only 24. That means that it is much less likely to get chloride pits in coastal or ocean service. It's almost 2:1 in favor of yield strength.
• Duplex 2205 vs. 904L: Compared to 904L, Duplex 2205 has a higher nickel content and a higher price, but it has the same level of mechanical strength. 904L is good at resisting corrosion in weak sulfuric acid environments. When there are big loads on the structure, Duplex 2205 is the better choice.
• Duplex 2205 vs. Super Duplex (S32750): Super duplex grades have a PREN above 40 and work well in the roughest service circumstances. A lot more money is also spent on them. When temperatures and chloride levels stay in normal ranges, Duplex 2205 offers a better mix of cost and performance without losing corrosion resistance.
• Duplex 2205 vs. ASTM A312 TP316L: ASTM A312 covers austenitic pipe whether joined or not. When switching from A312 TP316L to ASTM A790 Duplex 2205 Stainless Steel Pipe in chloride-rich or high-pressure situations, the wall thickness can often be lowered. This makes up for the higher cost of the material and greatly increases the number of replacement cycles.

These examples show that Duplex 2205 is a good compromise between being strong enough to reduce material weight and corrosion-resistant enough to cut down on maintenance cycles. It is also cheaper than other duplex options.

Procurement Insights for Duplex 2205 Pipe Supply

Sourcing certified ASTM A790 Duplex 2205 Stainless Steel Pipe requires more than just finding a listed supplier. When buying things for big oil and gas projects, sourcing teams can make good choices by keeping these things in mind.

Mill test reports (MTRs) must show that they meet ASTM A790 standards, include a full chemical analysis according to UNS S32205, and show that the mechanical test results can be linked to the specific heat. Any supplier that won't provide full paperwork should be quickly ruled out.

The choice between seamless and welded form is a useful one. When weld-zone uniformity is very important, seamless pipe (made without a longitudinal weld seam) is best for high-pressure and sour service applications. For lower-pressure process lines and structural uses, welded pipe that meets ASTM A790 is fine as long as the weld is checked for soundness with X-rays or ultrasound.

When you place an order at the mill, it usually takes 8–14 weeks to get Duplex 2205 in non-standard sizes. Distributors who keep these sizes in stock can cut this time down for popular sizes. When talking about large orders, using forward contracts or price-adjustment clauses to lock in prices against changes in the nickel and molybdenum markets lowers the budget's exposure. When exporting goods from the U.S., you should include the business invoice, packing list, country-of-origin certification, and material test results.

Installation, Maintenance, and Quality Assurance

Welding Best Practices

When welding Duplex 2205, controlled heat input—usually between 0.5 and 2.5 kJ/mm—is needed to keep the balance of the austenite and ferrite phases in the area that is heated. Over-alloyed filler metals, like ER2209, which has about 9% nickel, make up for the nitrogen that is lost during fusion and keep the weld seam resistant to rust. Most of the time, preheating is not needed, but the temperature between passes must stay below 300°F (150°C) to avoid too much ferrite formation.

Inspection and Pressure Testing

Before they are put into service, oil and gas ASTM A790 Duplex 2205 Stainless Steel Pipe systems should be tested under hydraulic pressure at 1.5 times the design pressure for long enough to find any leaks or deformations. Ultrasonic thickness tracking at erosion-prone elbows and tees should be part of a regular in-service check. Flanged connections should also be looked at visually for crevice corrosion. Given the ferritic phase content, magnetic particle testing can find surface-breaking discontinuities. This makes it a useful extra tool for inspections in the field.

Why Choose Duplex 2205 Pipe for Oil and Gas Processing

Duplex 2205's fame is always backed up by real-world operations. Offshore operators in the North Sea have found that duplex stainless steel pipework in seawater injection systems can last for more than 25 years. This is in contrast to 316L pipework, which needs to be replaced every 7–10 years in the same type of service. Deepwater projects in the Gulf of Mexico have decided to use Duplex 2205 for all of their topside process pipes. This is because lifetime cost modeling, which takes into account inspection, repair, and replacement costs, supports the higher-grade material, even though it costs more per unit.

The alloy's properties make it useful for more than just oil and gas. It can also be used in electrochemical processing systems, hydrogen production equipment, and chemical plant infrastructure where chloride-containing process fluids or acidic media speed up corrosion. As the energy shift increases the need for electrolyzers and fuel cell balance-of-plant parts, bidirectional Duplex 2205 pipes are also being used more often in these applications.

Conclusion

When made to ASTM A790, ASTM A790 Duplex 2205 Stainless Steel Pipe has a performance rating that regular stainless steels just can't match in harsh oil and gas settings. Its high yield strength, resistance to chloride corrosion, and ability to work with normal manufacturing methods make it a very valuable product for use on offshore platforms, in pipelines, and in chemical processing plants. Specifying Duplex 2205 is a choice that is backed by both technical data and long-term cost logic. This is because this grade is becoming more and more compatible with energy transition applications and has been shown to have benefits over its entire lifespan.

FAQ

Why choose duplex 2205 over 316L for coastal or offshore piping?

Duplex 2205 has a PREN of about 33–35 compared to 24 for 316L. This means it is much more resistant to chloride pitting and crevice corrosion. It also has a yield strength that is almost twice as high as 316L. This means that engineers can specify smaller walls while keeping the same pressure values. This makes the system lighter overall.

What is the maximum service temperature for ASTM A790 duplex 2205?

For long-term use, the temperature should stay below 600°F (315°C). Long-term contact with temperatures close to 475°C causes a phase change called 475°C embrittlement. This makes the material much less resistant to impact and should be avoided in design.

What is the difference between UNS S31803 and UNS S32205?

The minimum amounts of chromium (22%), molybdenum (3%), and nitrogen (0.18%) in S32205 are higher than those in S31803. These changes make the resistance to pitting and corrosion better in harsh service conditions.

Can duplex 2205 pipe be welded on-site?

You can, as long as you follow the right steps. Use ER2209 filler metal, keep the temperatures between passes below 300°F (150°C), and add heat in a controlled way. Post-weld heat treatment isn't usually needed, but solution annealing may be asked for in cases where the joint is very important.
