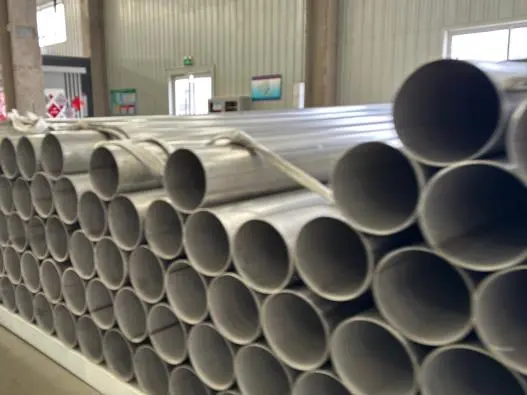

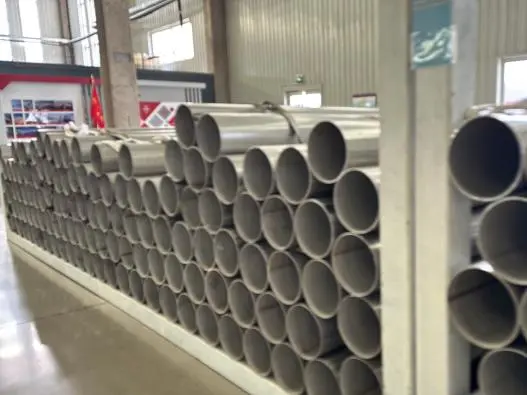

5 Top Applications of ASTM A312 304 Stainless Steel Pipe

ASTM A312 304 Stainless Steel Pipes are a reliable choice for a wide range of industries when it comes to important piping systems for harsh industrial settings. The ASTM A312/A312M-22 standard says that these pipes, which come in seamless, welded, and highly cold-worked forms, have great resistance to rust, high mechanical strength, and long service life. Their austenitic makeup, which includes 18–20% chromium and 8–12% nickel, makes them reliable in harsh settings like chemical processing and pharmaceutical production. These pipes come in sizes ranging from NPS 1/8" to 48" and wall thicknesses from Sch 5S to Sch XXS. They can meet complicated technical needs and still meet strict quality standards.

Process Piping Systems in Chemical and Petrochemical Industries

In chemical and petroleum plants, working conditions are very harsh, and if equipment breaks down, huge losses can happen. ASTM A312 304 Stainless Steel Pipes are used to move process fluids in these areas because they are resistant to acids, alkalis, and high-temperature agents that break down metals.

Why Chemical Processors Trust This Material

ASTM A312 304 Stainless Steel Pipes made from TP304 grade have a controlled carbon content (max 0.08%), which keeps chromium carbide from forming at grain boundaries when it is welded. This feature of the metal keeps intergranular corrosion from happening, which is a typical way for things to break down in chemical service settings with nitric acid, organic acids, and chloride-containing solutions. Their mechanical properties include a minimum tensile strength of 515 MPa and a yield strength of 205 MPa. This means that they can hold up under pressures of more than 2000 psi in heat transfer systems and reactor feed lines.

Manufacturing Precision That Matters

Professionals in the buying process give priority to pipes that were made by solution annealing at 1900°F and then quickly cooling them in water. This heat process breaks down carbides and makes the grain structure regular in an austenitic steel. When projects need smooth pipes, high-pressure steam condensate return systems don't have any weak spots because there are no lengthwise welds. Welded variants go through strict non-destructive testing according to ASME B31.3; ultrasound and x-ray tests make sure the weld quality meets the standards for Acceptance Criteria Group 2.

ASTM A312 304 Stainless Steel Pipes used in new installations in ethylene plants in North America show that they can last for more than 20 years with little upkeep. One plant on the Gulf Coast said that corrosion-related replacements of 15,000 linear feet of TP304 pipe that handled 180°C weak sulfuric acid had not been needed. For projects to stay on schedule, it's important to know what your suppliers can do about dimensional tolerance control (+15% to -12.5% wall thickness per ASTM A312) and delivery lead times, which can be anywhere from seven days for standard sizes to six weeks for custom schedules.

Food and Beverage Industry Applications

In food-grade preparation systems, the choice of materials is based on cleanliness and product purity. Austenitic stainless steel's non-reactive surface keeps flavors from getting messed up in places like dairy processing lines, beer fermentation systems, and beverage bottling plants.

Hygienic Design Standards

Electropolished inner finishes have Ra values below 0.8 micrometers, which means there are no tiny cracks where bacteria can grow. This surface treatment, along with the material's natural resistance to organic acids found in fruit juices and carbonated drinks, meets FDA 21 CFR Part 210/211 standards for surfaces that come into contact with products. When caustic soda solutions with amounts up to 10% are used in CIP (Clean-in-Place) processes, the solution-annealed state stops stress corrosion cracking.

Grade Selection for Cost Optimization

ASTM A312 304 Stainless Steel Pipes are TP304 stainless steel pipes. The TP316/316L types are better at resisting chloride, but TP304 works well enough for uses where the chloride content is less than 60 ppm at room temperature. Comparing the two types of pipe shows that TP304 is about 15 to 20 percent less expensive than TP316. This means that it is a better choice for water distribution headers, clean air piping, and ingredient transfer lines in controlled settings. Teams in charge of buying things should check that sellers keep their ISO 9001 certification and give them Mill Test Certificates that show the full chemical makeup and can be tracked back to EN 10204 3.1 standards.

More and more, dairy plants in Wisconsin and California are asking for bright annealed finishes that don't need passivation processes after installation. The shiny surface also makes it easier to look at during regulatory checks, which cuts the time needed to make sure compliance by about 30% compared to pickled finishes.

HVAC and Plumbing Systems

The life of a building's infrastructure relies on piping systems that can handle changes in temperature, humidity, and water chemistry. ASTM A312 304 Stainless Steel Pipes have become popular in business building projects that want to ensure 50 years of service life.

Performance in Moisture-Laden Environments

The chromium oxide inactive layer on TP304 pipes regenerates itself when oxygen is present, unlike carbon steel, which gets external cracking in condensate drain lines. This ability to fix itself is useful in chilled water systems that work at 4–10°C and have surfaces that are constantly condensing. The material stays structurally sound at temperatures ranging from -196°C to 870°C, so it can be used in both cold uses and loops that recirculate hot water at high temperatures.

Seamless vs. Welded: A Procurement Decision

When it comes to high-pressure systems like steam condensate return systems, seamless pipes such as ASTM A312 304 Stainless Steel Pipes take away the need to worry about the quality of the lengthwise welds. But welding pipes made with the TIG (Tungsten Inert Gas) or plasma arc methods is cheaper for sizes above NPS 10, with prices 25–35% lower than seamless pipes of the same size. Building rules, like the International Plumbing Code (IPC) and the Uniform Mechanical Code (UMC), accept both ways of making things as long as they are backed up by the right paperwork for material certifications and pressure tests.

When pre-cut lengths are brought on time, installation goes more quickly and easily. Suppliers that offer seven-day transport to major distribution hubs cut down on the need for on-site storage and keep project delays to a minimum. For renovation jobs in New York and Chicago, builders say that threaded black iron pipe is 40% faster to install. They say this is because the material is 25% lighter than steel and doesn't need as many corrosion protection measures.

Pharmaceutical and Biotech Manufacturing

In pharmaceutical production settings, every choice of material is based on following the rules and keeping the surroundings clean. ASTM A312 304 Stainless Steel Pipes are essential for making APIs (Active Pharmaceutical Ingredients) and filling them in a clean way because they are chemically neutral and can be tracked.

Meeting FDA and EMA Standards

Pharmaceutical setups that use ASTM A312 304 Stainless Steel Pipes need more thorough paperwork than is usually expected in business settings. Material Test Reports (MTR) according to EN 10204 3.2 must show that all the limits for elemental makeup, mechanical qualities, and heat treatment factors have been met. The solution annealing method makes sure that all chromium carbides are gone, which stops galvanic corrosion in water systems with a resistance higher than 15 megohm-cm.

Surface roughness requirements for pharmaceutical pipes usually call for Ra values below 0.5 micrometers, which can only be reached by electropolishing. This finishing step gets rid of the iron particles that are buried in the surface layer. This makes a chromium-rich passive film that stops biofilm from forming. As part of the validation process for new installations, bacterial endotoxin tests (LAL assay) and Total Organic Carbon (TOC) analysis are used to make sure that the level of cleanliness is appropriate for making injected drugs.

Supplier Selection Criteria

Purchasing offices give producers of ASTM A312 304 Stainless Steel Pipes with ISO 17025-accredited testing labs that can use X-ray fluorescence spectrometry for Positive Material Identification (PMI) the most attention. It is very important to have Welding Procedure Specifications (WPS) and Procedure Qualification Records (PQR) on hand when checking circular welding systems that are used to connect sewage tubes. According to biotech facilities in Massachusetts and North Carolina, how responsive a supplier is is a key factor. After-sales technical support cuts qualification times by three to six weeks by submitting documentation ahead of time and providing on-site guidance during FAT (Factory Acceptance Testing) procedures.

Full material tracking from heat number to final installation site makes it possible to quickly find the root cause during reviews into deviations. This genealogy information helps the FDA follow FDA 21 CFR Part 11 rules for keeping computer records in approved production settings.

Architectural and Structural Applications

Modern buildings use visible structural elements that are both aesthetically pleasing and long-lasting. Stainless steel pipes are used as both useful conduits and decorative elements in public works projects, transit stops, and business buildings.

Corrosion Resistance Meets Visual Appeal

Building materials in urban seaside areas are exposed to air that is high in salt, which speeds up the rusting of most metals. TP304 surfaces have an inactive chromium oxide layer that keeps their shiny shine for decades without painting or coating them. For stairs, canopy support structures, and decorative front elements, architects ask for bright annealed or polished finishes with surface codes of #4, #6, or #8.

When visible pipes need to line up perfectly with nearby structural parts in building uses, accuracy in measurements is very important. As per ASTM A312 304 Stainless Steel Pipes, manufacturing limits ensure that the length is straight within 0.2% of the whole and that the outside circle is not more than 1% oval. This accuracy cuts down on the time needed to make adjustments in the field and the cost of installation in situations where maintaining a consistent look is important.

Performance vs. Cost Analysis

When compared to types of TP316 that contain 2% to 3% molybdenum, TP304, such as ASTM A312 304 Stainless Steel Pipes, is 15–20% cheaper while still providing enough corrosion protection for use in non-marine environments. Structural engineers figure out lifecycle costs by assuming that no upkeep is needed over the 40-year lifespan of a building. This results in total ownership costs that are 30–40% lower than painted carbon steel options that need to be re-coated every eight to twelve years.

Quality control rules for building projects stress that the surface finish should be the same from one production lot to the next. Reputable makers use spectrophotometric analysis to keep color matching standards high. This makes sure that systems longer than 10,000 linear feet look the same. Getting suppliers involved early in the design process helps procurement teams because it lets them have value engineering conversations about how to best optimize wall thickness and connection methods that balance structural needs with budget limitations.

Conclusion

ASTM A312 304 Stainless Steel Pipes can be used in many different fields, such as chemical processing, food production, building systems, pharmaceutical manufacturing, and architecture. This shows how useful it is as an industrial material. Because it doesn't rust, is strong, and meets worldwide quality standards, it is the best material for investing in important infrastructure. To be successful in procurement, you need to know about the properties of each grade, how the manufacturing process affects them, and how well the provider can record and deliver.

FAQ

What distinguishes TP304 from TP304L stainless steel pipes?

The carbon content is what sets these types apart: TP304 has a maximum carbon content of 0.08%, while TP304L has a maximum carbon content of 0.03%. Lower carbon in TP304L makes it easier to weld and lowers the chance of sensitization in heat-affected areas. This makes it better for uses that need a lot of welding without heat treatment afterward.

How does corrosion resistance compare between TP304 and TP316 pipes?

TP316 has 2 to 3 percent molybdenum in it, which makes it more resistant to chloride pitting and crevice corrosion in coastal settings and chemical processes that use halides. When molybdenum's extra defense isn't needed, TP304 is a cheaper alternative that works just as well in normal atmospheric conditions and light chemical exposures.

What are typical lead times for bulk orders?

Standard pipe widths, from NPS 1" to 12" and Sch 10S to 40S, usually ship within seven to fourteen days from big suppliers who keep stock on hand. Orders over 50 tons, custom sizes, or special plans may take four to eight weeks, based on the manufacturer's capacity and the schedule for heat treatment.

Partner with YOUFA for Certified Stainless Steel Piping Solutions

YOUFA offers complete stainless steel pipe systems that are backed by ISO 9001, PED, and TÜV certifications. Each TP304 pipe is made to meet ASTM A312/A312M-22 standards. Every year, our 15 production lines make 50,000 tons of steel, which is used for everything from single-pipe samples (minimum order quantity: 1 pipe) to large-scale industrial systems. Full paperwork packages, which include MTR 3.1/3.2, WPS/PQR, and UT/RT records, make the buying process faster and easier while still allowing full material tracking. We are a reliable ASTM A312 304 Stainless Steel Pipes source that can offer expert advice, help with commissioning on-site, and delivery to Tianjin Port in seven days. Email our tech team at info@youfass.com to talk about the details of your project and get personalized quotes.
